Description

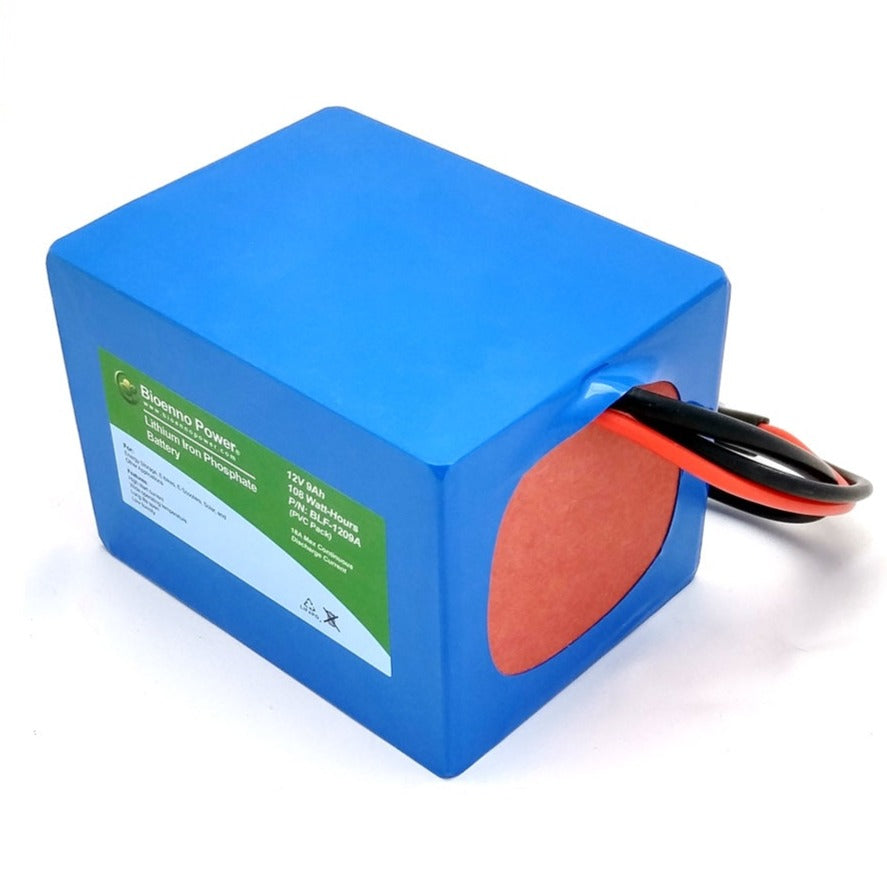

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1209A is a state-of-the-art 12V 9Ah battery. Featuring one of the smallest form factors offered by Bioenno Power, this 12V 9Ah battery is ideal for portable electronics where low power consumption and a compact, lightweight design are essential. Equipped with an integrated Protection Circuit Module (PCM), this battery ensures reliable performance and safety with complete internal cell balancing and protection against overcurrent, undervoltage, overvoltage, and short-circuiting.
Key Features of the 12V 9Ah Battery
1. Advanced LiFePO4 Technology:
- Stable Power Delivery: Provides consistent and reliable power with no EMI/RFI interference, ensuring quiet and efficient operation.
- Integrated PCM: Ensures internal cell balancing and comprehensive protection against overcurrent, undervoltage, overvoltage, and short-circuiting.
2. High Performance and Reliability:
- Maximum Continuous Discharge Current: 12A
- Maximum Peak Pulse Current: 24A (for 2 seconds)
- Max Power Output: 288 Watts (12V x 24A = 288 Watts)
- Extended Service Life: Offers a long service life with superior LiFePO4 technology, supporting up to 2000 charge cycles.
3. Lightweight and Compact Design:
- Space-Saving: Perfect for applications where space is limited, providing powerful performance in a small package.
- Dimensions: 4.3 in. x 3.2 in. x 3.1 in. (107 mm x 81 mm x 77 mm)
- Weight: 2.6 lbs. (1.2 kg)
4. Convenient Charging with Multiple Connectors:
- Dual Connectors: Charge or discharge through either the DC Barrel Plug or Anderson Powerpole connectors.
- Compatible Charger: Includes an option for a 110VAC/220VAC AC-to-DC charger, providing 2A with a DC plug.
- Charging Specifications: Input Voltage: 110VAC/220VAC, Output Voltage: 14.6VDC, Current: 2A, Connector: DC Plug (Model Number: BPC-1502DC)
Specifications of the 12V 9Ah Lithium Battery
- Voltage: 12V
- Capacity: 9Ah
- Case Type: PVC Pack

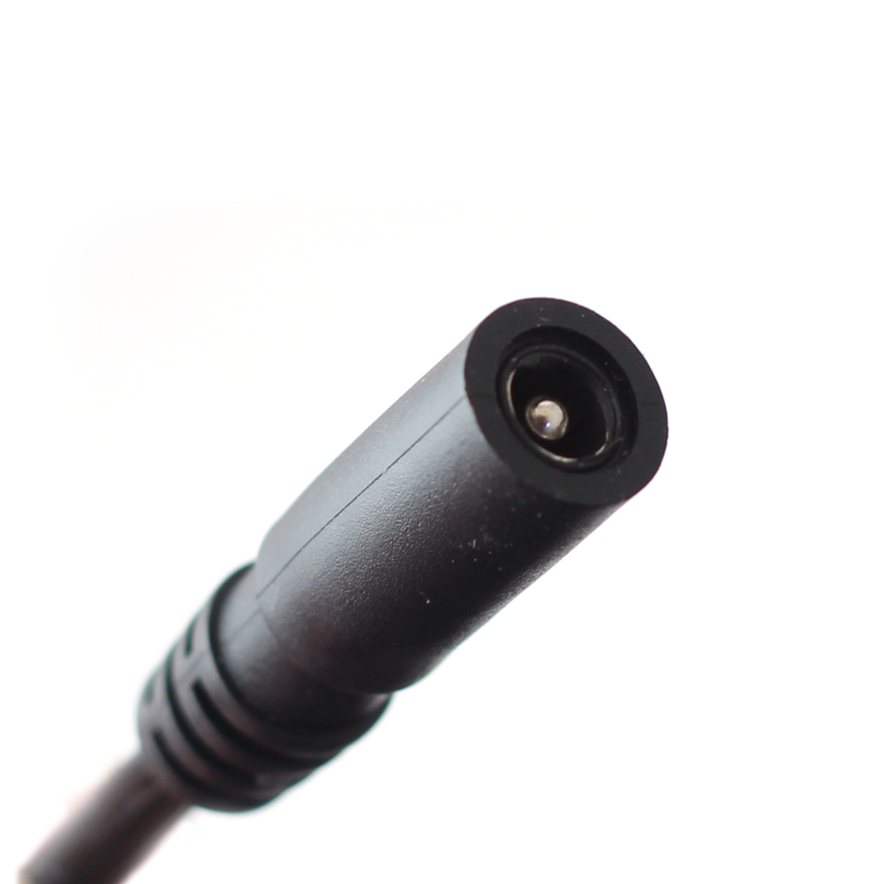

- Charge Connector: DC Barrel Plug
- Discharge Connector: Anderson Powerpole (PP30)
- Includes Built-in PCM: Ensures internal cell balancing, overcurrent protection, undervoltage protection, overvoltage protection, and short circuit protection.
Benefits of the 12V 9Ah Rechargeable Battery
1. Long-Lasting and Reliable:
- Extended Cycle Life: Benefit from a longer battery lifespan with up to 2000 charge cycles.
- Safe Operation: Enhanced safety features protect against overcharging, over-discharging, and short-circuiting.
2. Environmentally Friendly:
- Green Technology: LiFePO4 batteries are free from harmful chemicals like lead and acid, making them an eco-friendly choice.
3. Easy Maintenance:
- Low Maintenance: Minimal maintenance required compared to traditional batteries, allowing you to focus on your applications.
Ideal Applications for the 9Ah Battery
- Portable Electronics: Suitable for a wide range of low-power electronic devices.
- HAM Radio: Provides reliable power for high-power radio communications.
- Solar Energy Storage: Ideal for storing solar energy efficiently.
- Audio-Visual Equipment: Ensures consistent power for audio amplifiers and visual equipment.
- LED Lighting: Provides dependable power for LED lighting applications.
Policies
- Shipping: Standard shipping options available.
- Return/Exchange: 30-day return or exchange policy.
- Warranty: Detailed warranty information available on the warranty page.
Conclusion
Upgrade your power solutions with the Bioenno Power 12V 9Ah LiFePO4 Battery (BLF-1209A). Experience the benefits of advanced lithium iron phosphate technology, offering superior performance, reliability, and environmental friendliness. Ideal for a wide range of applications, this 12V 9Ah lithium battery ensures you have reliable power when you need it most.
BLF-1209A Battery Specifications
Voltage: 12V
Capacity: 9 Ah
Case Type: PVC Pack
Charge Connector: DC Barrel Plug
Discharge Connector: Anderson Powerpole (PP30)
Maximum Continuous Discharge Current: 12A (Make sure your load consumes less than 12A)
Maximum Peak Pulse Current: 24A (for 2 sec.)
Max Peak Power Delivered to Load at 12V: 288 Watts (12v x 24A = 288 Watts) (Make sure your load consumes less than 288 Watts Continuous)
Dimensions:(L x W x H) 4.3 in. x 3.2 in. x 3.1 in. (107 mm x 81 mm x 77 mm)
Weight: 2.6 lbs. (1.2 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Please note you can also use an adapter to convert the output connector from the battery to various outputs including a DC plug.

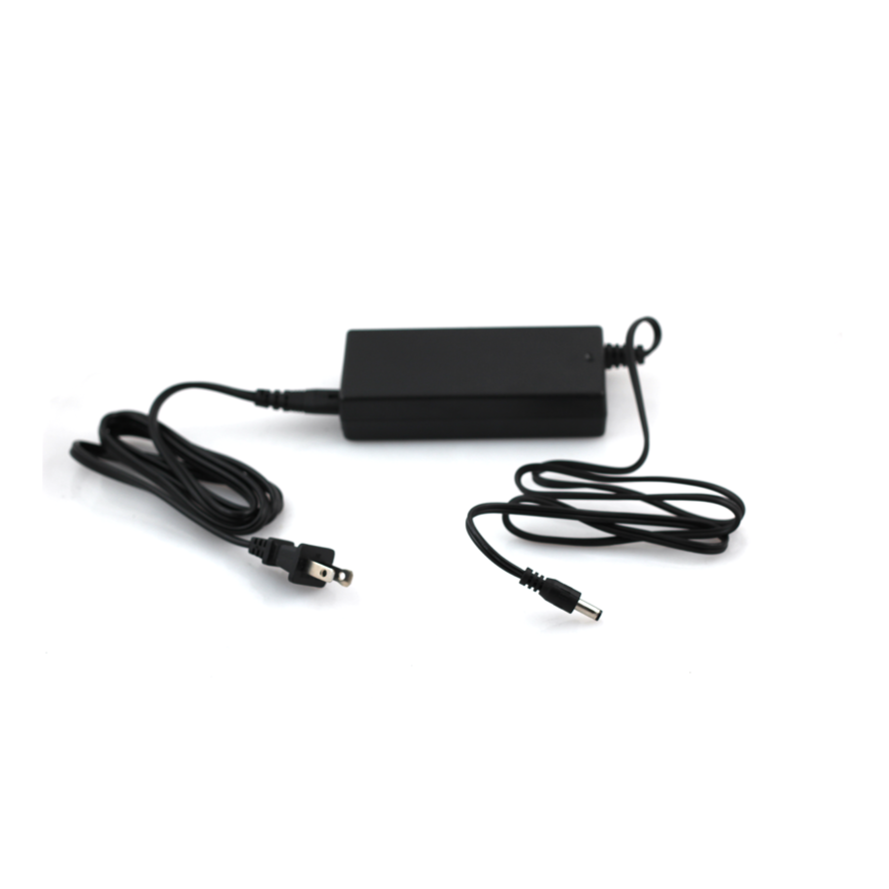

Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 14.6VDC
Current: 2A
Connector: DC Plug
Model Number: BPC-1502DC
Policy
Shipping: Standard
Returns/Exchange: 30 Days
Warranty: See Separate Warranty Page
