Product Overview
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1220AS is a 12V 20Ah high-output battery designed for intensive use across scientific, aviation, and portable power systems. This product includes the BA-SMALLRING-PP45 adapter. Delivering the power of a 12V 40Ah SLA battery at just a fraction of the weight, this ABS-sealed variant offers long-lasting performance, integrated protection, and zero-noise operation in a rugged, drop-in form factor. The
Key Features of the 12V 20Ah Lithium Battery
1. Powerful Output, Lightweight Design
-
Max Continuous Discharge: 30A
-
Peak Discharge Current: 40A (5 seconds)
-
Delivers up to 480 Watts in a body weighing only 5.8 lbs.—nearly 80% lighter than equivalent SLA units.
2. Advanced Safety with PCM
-
Built-in PCM (Protection Circuit Module) balances internal cells and protects against overcurrent, overvoltage, undervoltage, and short circuits.
-
Integrated charge circuitry ensures efficient and safe charging cycles.
3. Durable, EMI-Free Operation
-
Sealed ABS case provides impact resistance and durability.
-
No electromagnetic or radio-frequency interference—ideal for avionics and sensitive electronics.
4. Charger Compatibility
-

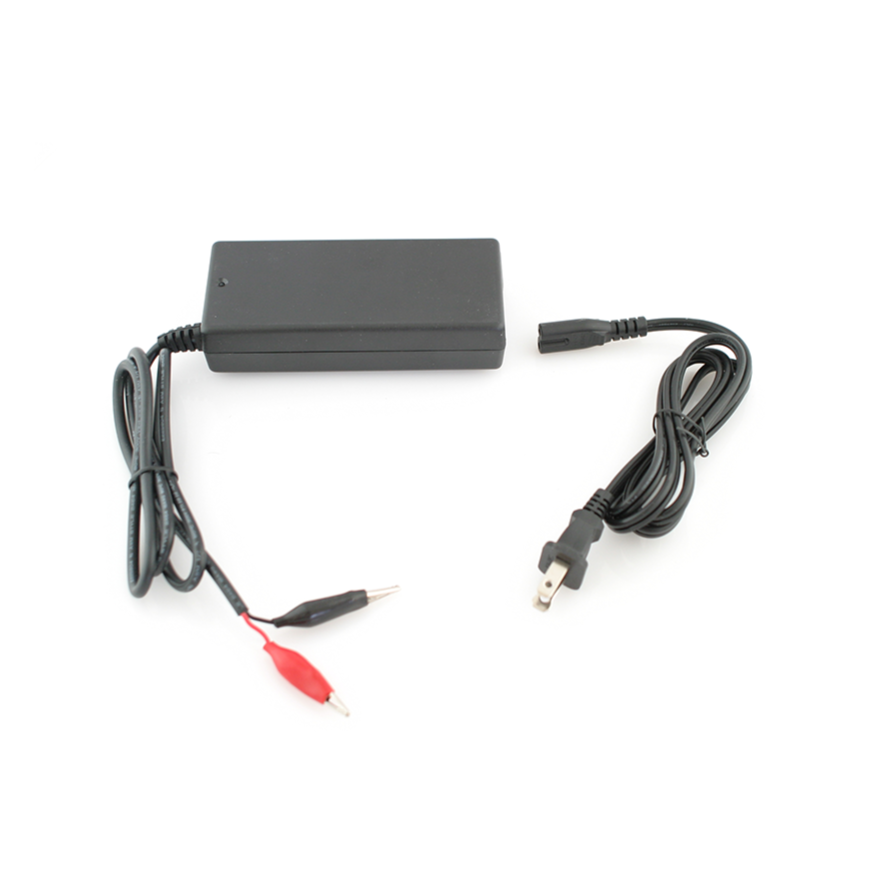

Compatible with Bioenno Power BPC-1504C AC-to-DC charger
-
Charger Specs:
-
Input: 110VAC / 220VAC
-
Output: 14.6VDC at 4A
-
Connector: Alligator Clips
-
Battery Specifications – BLF-1220AS
-
Voltage: 12V
-
Capacity: 20Ah
-
Max Output Power: 480 Watts
-
Case Type: ABS Sealed
-

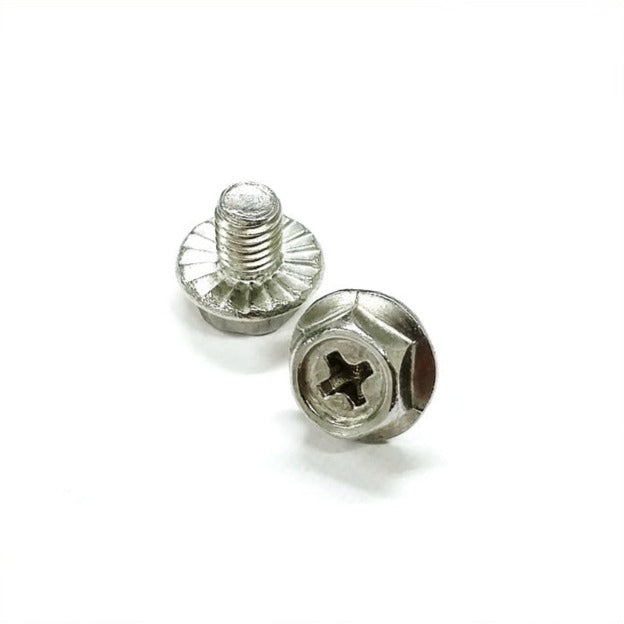

Connector: Screw Terminal
-
Dimensions: 7.2 in. × 3.2 in. × 6.7 in. (182 mm × 77 mm × 171 mm)
-
Weight: 5.8 lbs. (2.6 kg)
Benefits
-
Drop-In Replacement: Matches SLA power output with less weight and more cycles.
-
Longevity by Design: Expect 2,000–3,000 cycles at moderate use; 1,800–2,000 cycles under continuous high load.
-
Quiet and Clean: Perfect for RF-sensitive systems like avionics, radios, and scientific instruments.
Ideal Applications
-
Critical avionics in sailplanes
-
Scientific instrumentation and portable labs
-
E-bikes, e-scooters, and mobile AV setups
-
Off-grid solar storage systems
-
Backup communication and telemetry equipment
Policies
-
Shipping: Standard shipping available
-
Returns/Exchange: 30-day return policy
-
Warranty: See separate warranty page for full coverage
